Description

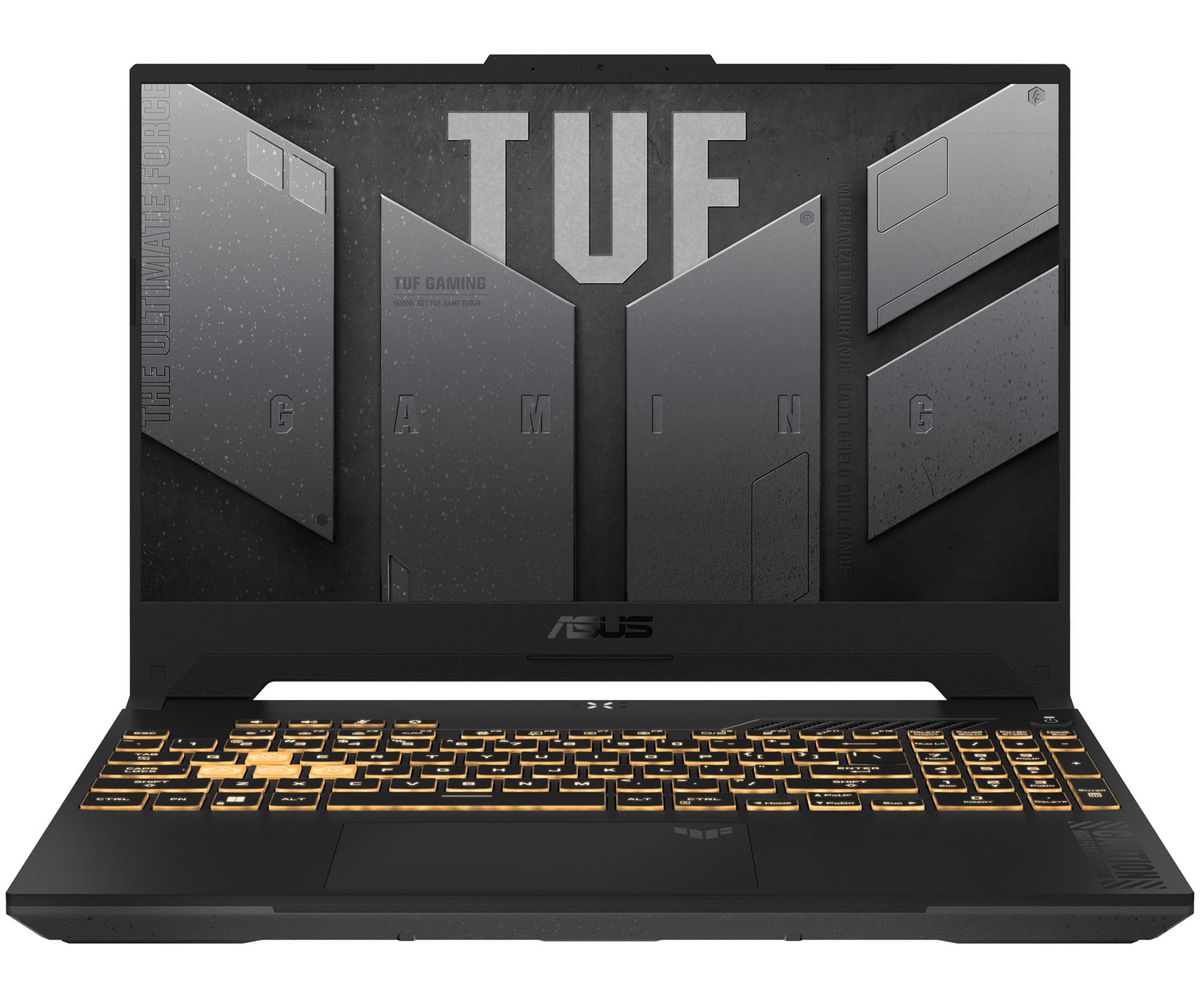

Asus Gaming TUF FX507Z Intel Core i7-12700H 32GB 512GB SSD Windows 11 Home

Screen size: 15.6″ FHD (1920 x 1080) 16:9
Processor: 12th Gen Intel Core i7-12700H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 14 cores: 6 P-cores and 8 E-cores)
Memory: 32GB DDR4-3200 SO-DIMM
Storage: 512GB PCIe 3.0 NVMe M.2 SSD
Graphics: NVIDIA 40 Series GeForce RTX 4050 6GB GDDR6 Dedicated Graphics
Operating system: Windows 11 Home

Marketing Name
ASUS TUF Gaming F15

Color
Mecha Grey

Processor
12th Gen Intel Core i7-12700H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 14 cores: 6 P-cores and 8 E-cores)

Discrete/Optimus
MUX Switch + Optimus

Graphic
NVIDIA 40 Series GeForce RTX 4050 6GB GDDR6 Dedicated Graphics

Graphic Wattage
1790MHzx at 95W (1740MHz Boost Clock+50MHz OC, 80W+15W Dynamic Boost)

Graphic Memory
6GB GDDR6

IGPU
Intel Iris X Graphics

Panel Size
15.6-inch

Resolution
FHD (1920 x 1080) 16:9

Refresh Rate
144Hz

Panel Tech
Value IPS-level

Brightness
250nits

Contrast
1000:1

NTSC %
45%

SRGB %
62.50%

Adobe %
47.34%

Anti-glare display

Adaptive-Sync

DIMM Memory
32GB DDR4-3200 SO-DIMM

Total System Memory
DDR4 32GB

Memory Slot
2 x SO-DIMM slots

Memory Max.
32GB

System Storage Installed
512GB PCIe 3.0 NVMe M.2 SSD

M.2 slots support either SATA or NVMe
2

M.2 SSD Support List
M.2 PCIe 512GB

Expansion Slot (includes used)
2 x DDR4 SO-DIMM slots

LAN
10/100/1000 Mbps

Wi-Fi/Bluetooth
Wi-Fi 6(802.11ax) (Dual band) 2×2 + Bluetooth 5.2 (xBluetooth version may change with OS version different.)

I/O Ports
1 x RJ45 LAN port
1 x Thunderbolt 4 support DisplayPort
1 x USB 3.2 Gen 2 Type-C support DisplayPort / G-SYNC
2 x USB 3.2 Gen 1 Type-A

Display output
1 x HDMI 2.1 TMDS

Audio
1 x 3.5mm Combo Audio Jack

Webcam
720P HD camera

Built-in array microphone

Backlit Chiclet Keyboard 1-Zone RGB

Speakers
2-speaker system

Audio Tech
AI noise-canceling technology
Dolby Atmos
Hi-Res certification

Operating System
Windows 11 Home

Security
BIOS Administrator Password and User Password Protection
Kensington Security Slot
Trusted Platform Module (Firmware TPM)

Battery
56WHrs, 4S1P, 4-cell Li-ion

6.0, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal

Whats in the box
1 x ASUS TUF Gaming F1
